2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications

2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications

2.0mm Pitch Wire Harness

24AWG Wire Harness

Customizable Length Wire Harness

Lieu d'origine:

Jiangsu, Chine

Nom de marque:

RY

Numéro de modèle:

RY-00127996

Contactez-nous

Demandez une citation
2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications
Détails de produit
Type de connecteur:
Adaptateur
Connecteur:
JST, SHLP, MOLEX, etc.
Logement:
JST, SHLP, MOLEX, etc.
Couleur:
Noir, blanc, rouge, jaune, vert, bleu
Courant nominal:
1.0A C.A., C.C
Tension nominale:
100V C.A., C.C
Longueur:
10CM/ Personnalisable
Type de câble:
1015,1007,1061,20276,2464, type blindé ou non blindé
Longueur du câble:
50mm-15000mm/personnalisé
Méthodes de traitement:
Sertissant par replis, pressant et types de soudure.
Lancement de connecteur:
0,5 mm-4,2 mm
Calibre de fil:
24AWG
taille du terrain:
2,0 mm
Nombre de broches:
6 broches
Épreuve de performance:
Test de performance électrique et électrique à 100%
Conditions de paiement et d'expédition
Quantité de commande min
50
Prix
$0.50-1.30
Produits connexes
Bon prix JST PHDR-10VS 2x5p 2.0MM Pitch to 10pin Phd Pa66 Connector Wire Harness with 1007 26awg Cable en ligne

JST PHDR-10VS 2x5p 2.0MM Pitch to 10pin Phd Pa66 Connector Wire Harness with 1007 26awg Cable

Obtenez le meilleur prix
Bon prix Custom 4pin JST GH 1.25mm Wire Harness with Pure Copper Conductor and Customized Length for Home Appliances en ligne

Custom 4pin JST GH 1.25mm Wire Harness with Pure Copper Conductor and Customized Length for Home Appliances

Obtenez le meilleur prix
Bon prix Custom Wire Harness with JST 1.25mm Pitch Connector and Customized Length ISO9001 Certified Electronic Wiring Harness en ligne

Custom Wire Harness with JST 1.25mm Pitch Connector and Customized Length ISO9001 Certified Electronic Wiring Harness

Obtenez le meilleur prix
Bon prix Custom 30AWG Wire Harness with 1.25MM Pitch 4Pin GH JST GHR-04V-S for LCD Display en ligne

Custom 30AWG Wire Harness with 1.25MM Pitch 4Pin GH JST GHR-04V-S for LCD Display

Obtenez le meilleur prix
Contactez-nous
86--13405295160
info@rygroup.net
Contact maintenant
Description de produit

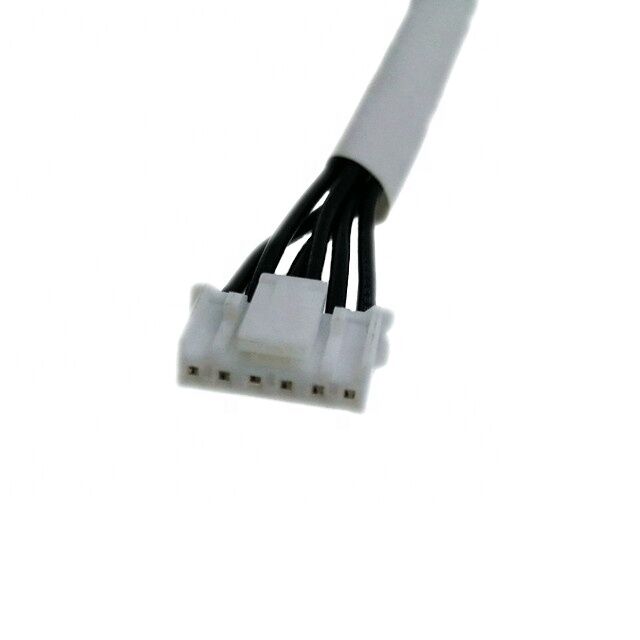

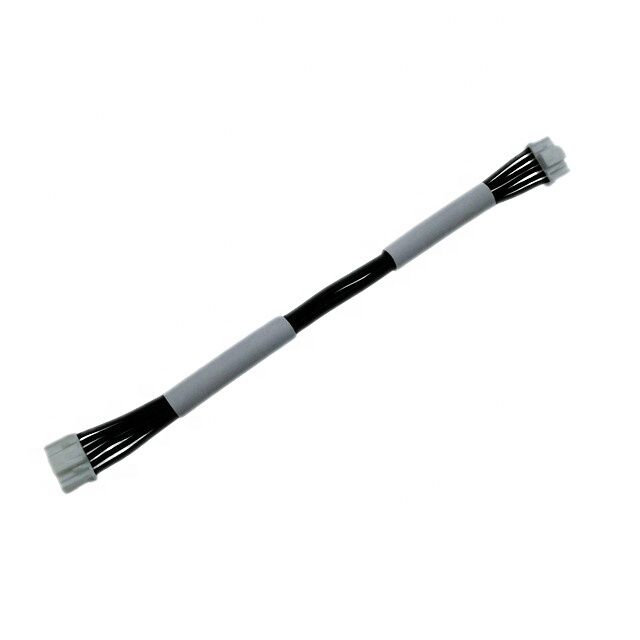

Hot Sale JST PAP 2.0mm Pitch 6pin to PAP 2.0mm Pitch 6pin 1007 24AWG Black Electronics Wire Harness
Product Overview

JST PAP 2.0mm pitch 6pin to PAP 2.0mm pitch 6pin 1007 24AWG black electronics wire harness designed for reliable signal transmission in various electronic applications.

Cable Type1015, 1007, 1061, 20276, 2464, shield or unshield type
Cable ColorOptional
ConnectorsJAE, HRS, JST, AMP, Dupont, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors
Cable Length50mm-15000mm/Customized
Processing WaysCrimping, pressing and soldering types
Pin Out ConnectionAs per customer's request
Connector Pitch Range0.5mm-4.2mm
CharacteristicsGood signal transfer, clear picture quality, stable connection
ISO CertificateISO9001:2008
Performance Test100% electrical and electricity performance test
StandardsISO/RoHS/FCC
Applications

LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA/Camera/LCM/Notebook/Tablet PC/HDD

Product Images
2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 0 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 0
About RY Electronics

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

Our manufacturing facilities can build just about many types of custom cable assembly (LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Advantages
  • Quality control: Most products have FCC, CE, ROHS certificates and ISO9001:2008
  • Low MOQ: 5pcs/10pcs/20pcs/50pcs, depending on different items
  • Fast Delivery Time: 2-15 days, On-Time Delivery
  • Good After-Sales Service: Technical support or return service in short time
  • 1 Year Warranty
  • OEM/ODM service
  • Alibaba Trade Assurance with 100% product quality protection, on-time shipment protection, and payment protection
Company Images
2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 2 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 4 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 4
Certifications
2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 6 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 6 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 8 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 8 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 10 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 10
Packing & Delivery
2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 12 2.0mm Pitch 24AWG Customizable Length Wire Harness for Electronic Applications 12
Frequently Asked Questions
Q: When can we get the reply?
A: Any inquiries will be replied within 24 hours.
Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.
Q: What's the delivery time?
A: It usually takes about 1-3 days to produce samples. It usually takes about 3-7 days to produce the products.
Q: What's your payment term?
A: We usually accept PAYPAL, T/T as the main payment term, and other payments can also be negotiated.
Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service.
Q: How to contact us?
A: Send your Inquiry Details in the Below, Click "Send" Now! Free sample and best answers are waiting for you.
