Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications

Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications

30PIN to 40PIN LVDS Cable

20-60pin Range Custom Wire Harness

24-40AWG Wire Size Electronic Wiring Harness

Lieu d'origine:

Jiangsu, Chine

Nom de marque:

RY

Certification:

ROHS

Numéro de modèle:

RY-df14x30-40

Contactez-nous

Demandez une citation
Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications
Détails de produit
Connecteur 1:
Hirose DF13 etc.
Connecteur 2:
Jae FI-X30HL etc.
Fil acceptable:
20276, etc.
Genre:
mâle à femelle, mâle à mâle
Taille:
24-40 AWG/20 cm
Broches:
2-60 broches
Type de câble:
32AWG,30AWG, 28AWG, 26AWG
Couleur de câble:
Noir / gris
Longueur de câble:
50 mm à 15 000 mm
Méthodes de traitement:
Types de sertissage, de pressage et de brasage
Lancement de connecteur:
0.3mm-4.2mm
Type de bouclier:
Bouclier simple, double bouclier, sans bouclier
Épreuve de performance:
Test de performance électrique et électrique à 100%
Noyaux de fil:
20 cœurs, 32 cœurs
Code HS:
8544421100
Conditions de paiement et d'expédition
Quantité de commande min
10
Produits connexes
Bon prix PWM Fan Splitter with 4Pin Male to Fan and 1 to 4 Female Connectors Using 22AWG PVC Cable en ligne

PWM Fan Splitter with 4Pin Male to Fan and 1 to 4 Female Connectors Using 22AWG PVC Cable

Obtenez le meilleur prix
Bon prix White Sleeved PCIe Power Cable Female to Dual 8P(6+2)pin Male GPU VGA Power Cable with 16AWG/18AWG and 20cm Length en ligne

White Sleeved PCIe Power Cable Female to Dual 8P(6+2)pin Male GPU VGA Power Cable with 16AWG/18AWG and 20cm Length

Obtenez le meilleur prix
Bon prix Customized Length 3.5mm Audio Cable with Multiple Connector Options and ISO9001 Certification for High-Quality Stereo Audio Transfer en ligne

Customized Length 3.5mm Audio Cable with Multiple Connector Options and ISO9001 Certification for High-Quality Stereo Audio Transfer

Obtenez le meilleur prix
Bon prix IP65 19.2 mm Panel Mount 12v SPST Momentary Push Button Switch with 2Pin Dupont and 50cm Cable en ligne

IP65 19.2 mm Panel Mount 12v SPST Momentary Push Button Switch with 2Pin Dupont and 50cm Cable

Obtenez le meilleur prix
Contactez-nous
86--13405295160
info@rygroup.net
Contact maintenant
Description de produit
JAE FI-X30HL Locked Type 30PIN to Hrs Hirose DF13 40pin LVDS Cable
Product Overview

Custom LVDS cable for LCD/LED panels and TV video applications, available in male-to-female and male-to-male configurations.

Specifications
Cable Type 32AWG, 30AWG, 28AWG, 26AWG
LCD 20-core single/double shield
LCD 32-core single/double shield
LCD 20/32-core non-shield
Cable Color Black/Grey
Connectors JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic
Cable Length 50mm-15000mm
Processing Methods Crimping, pressing, soldering
Connector Pitch 0.3mm-4.2mm
Key Features
  • Excellent signal transfer with clear, stable picture quality
  • Custom pin-out connections based on customer specifications
  • ISO9001:2008 certified manufacturing
  • 100% electrical performance testing
  • OEM/ODM services available
Applications
  • Displays and monitors
  • PCs and computers
  • Flat screen TVs
  • Printers, scanners, fax machines, copiers
  • Sound systems
  • Liquid crystal displays
  • Car DVD systems
  • Digital cameras
  • Airbag systems
  • Inkjet printers
  • Medical imaging equipment
Product Images

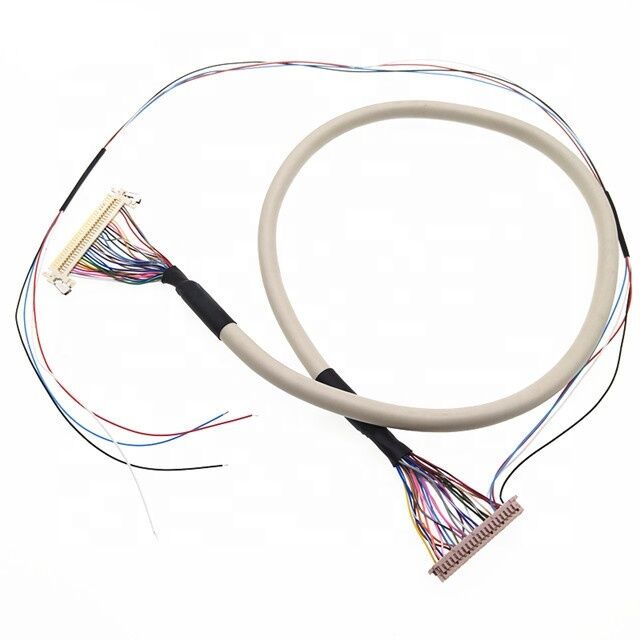

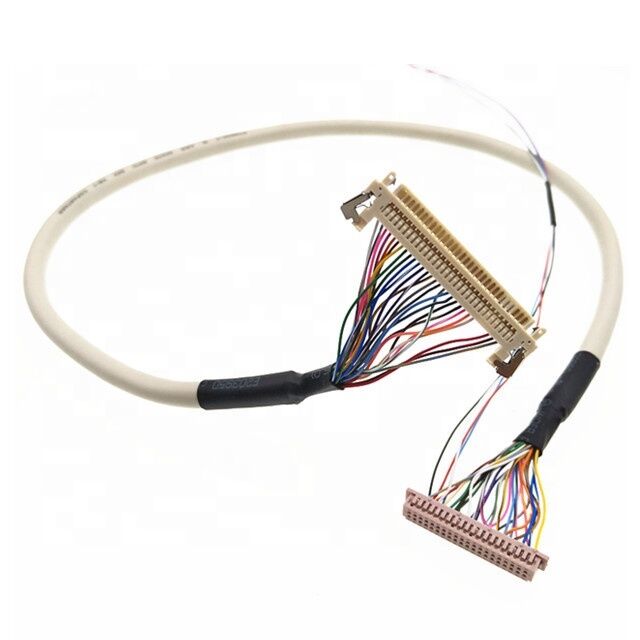

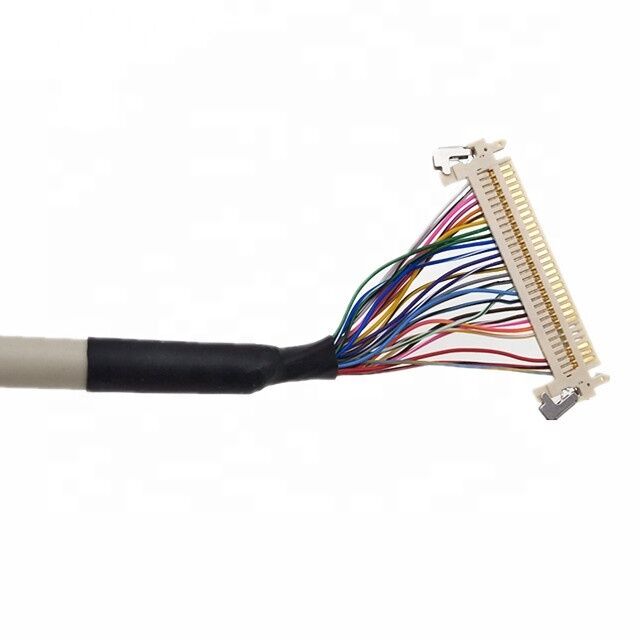

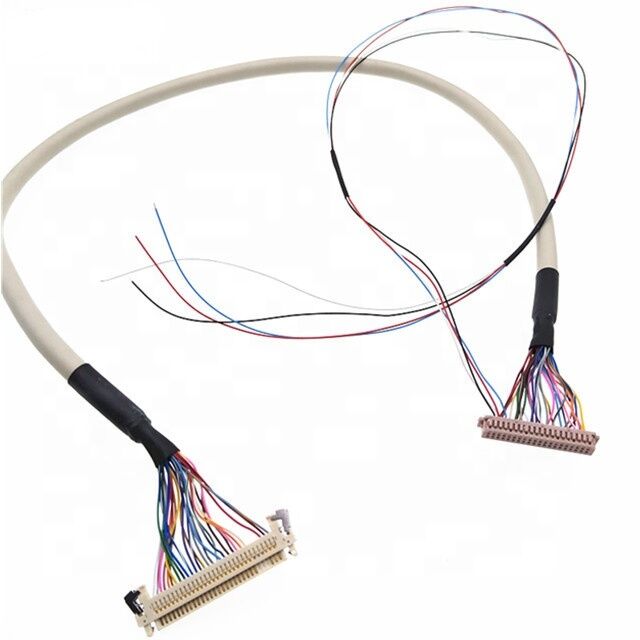

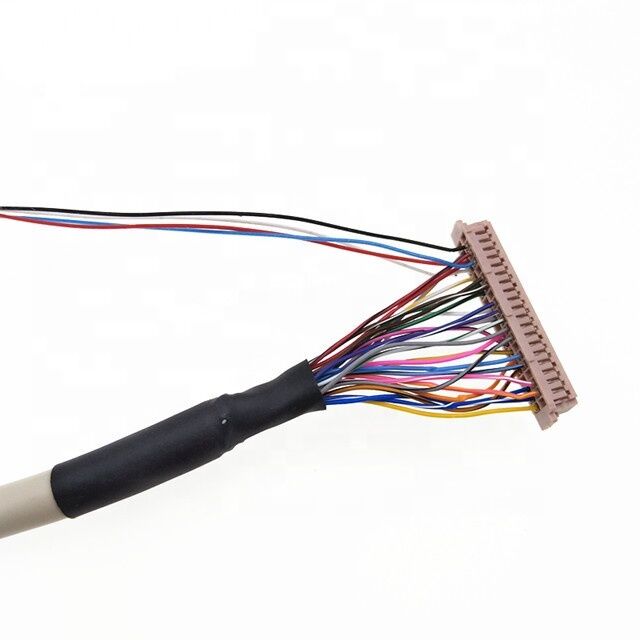

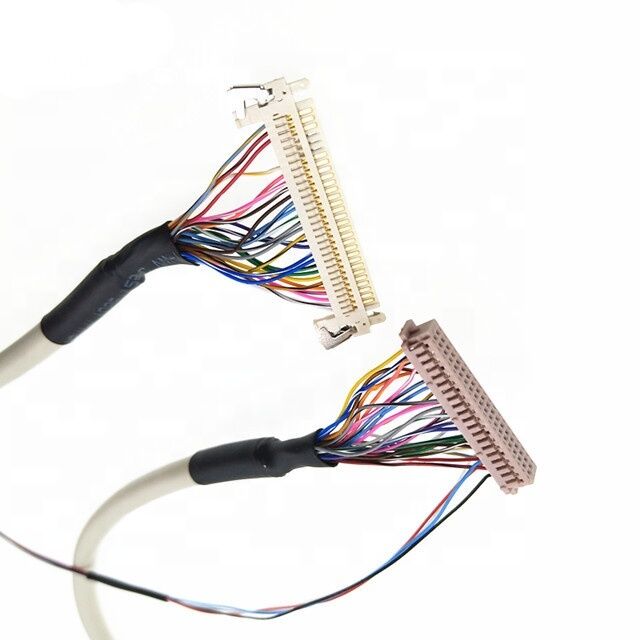

Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 0 Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 1 Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 2
Custom Solutions

Can't find the LVDS cable you need? Contact us with your requirements for a custom solution.

Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 3
Company Overview

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in various volumes to meet your needs.

Our manufacturing capabilities include:

  • LVDS cables, flat cables, RF cables, wire harnesses
  • GPS/WIFI/ISM/GSM/3G/4G antennas
  • RF connectors
Our Advantages
  • Quality control with UL, CE, ROHS certifications and ISO9001:2008
  • Low MOQ starting from 5 pieces
  • Fast delivery time: 2-15 days
  • Excellent after-sales service and technical support
  • 1-year warranty
  • OEM/ODM services
  • Alibaba Trade Assurance protection
Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 4 Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 5
Certifications
Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 6 Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 7 Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 8
Packing & Delivery
Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 9
Frequently Asked Questions
When can we get the reply?

Any inquiries will be replied within 24 hours.

Can I get some samples?

Yes, sample orders are available for quality check and market test (freight collect payment).

What's the delivery time?

Samples: 1-3 days production time
Products: 3-7 days production time

What's your payment term?

We usually accept T/T, with other payment methods negotiable.

What about quality problems?

We provide technical support or return service for any quality issues.

How to contact us?

Send your inquiry details below for free samples and expert answers.

Custom LVDS Cable 30PIN to 40PIN with 20-60pin Range and 24-40AWG Wire Size for LCD/Display Applications 10
