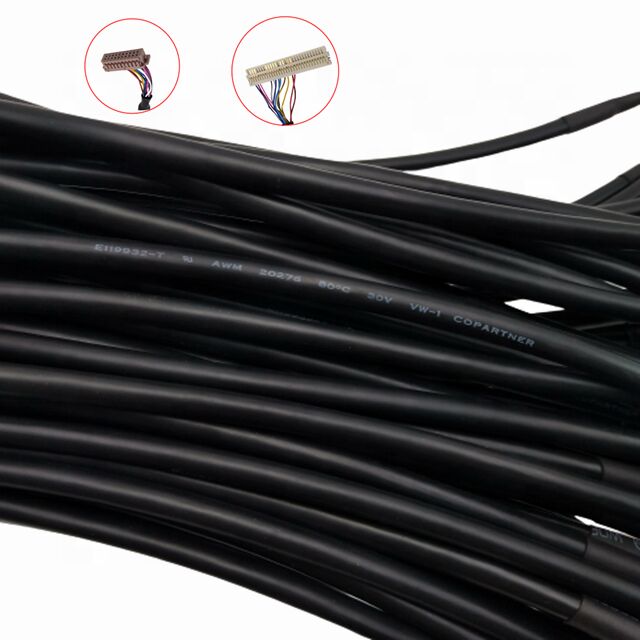

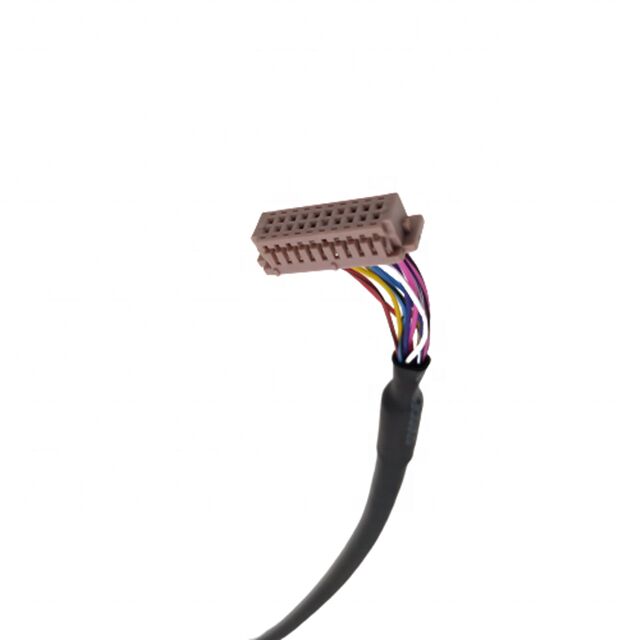

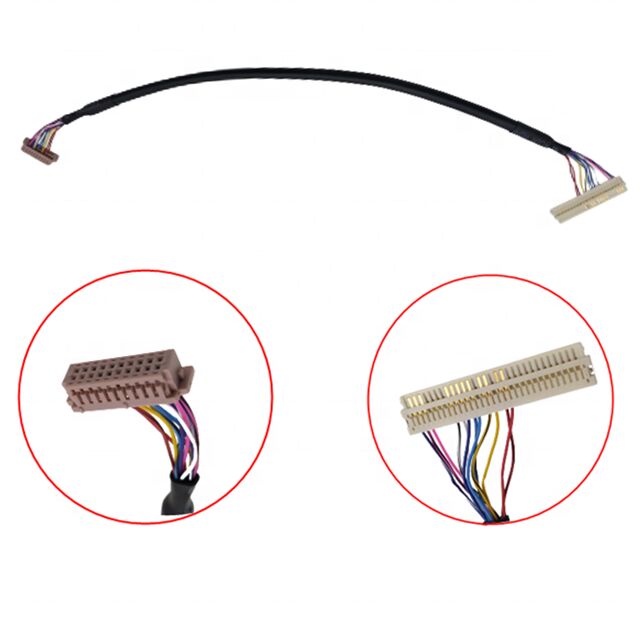

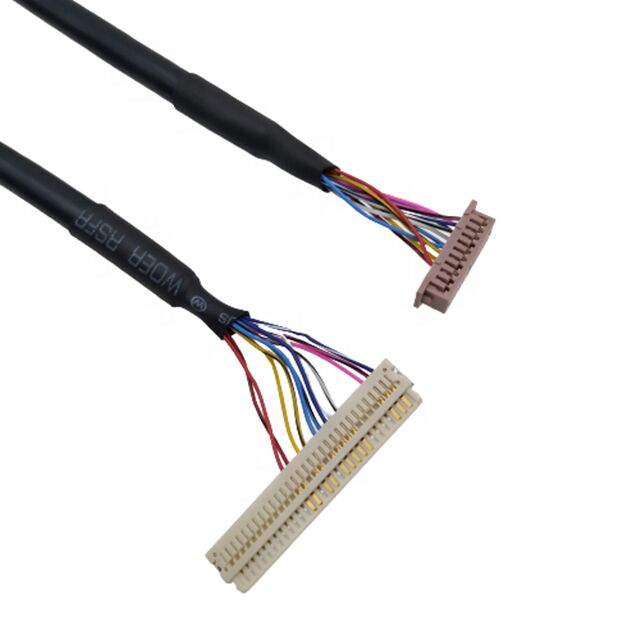

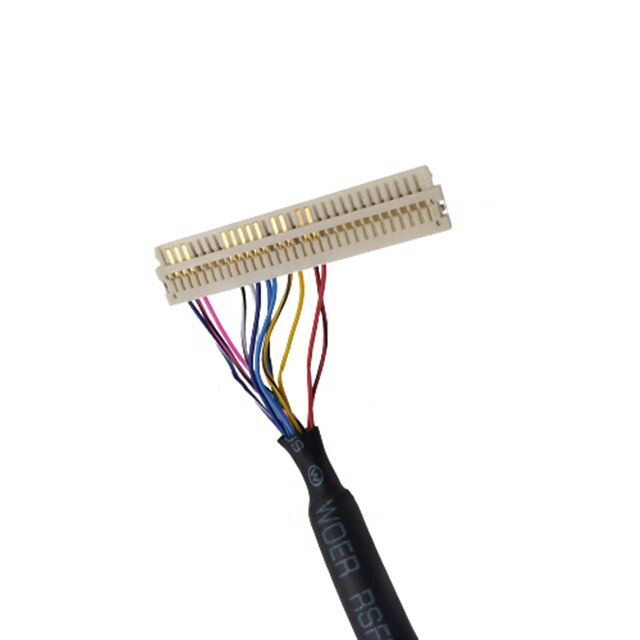

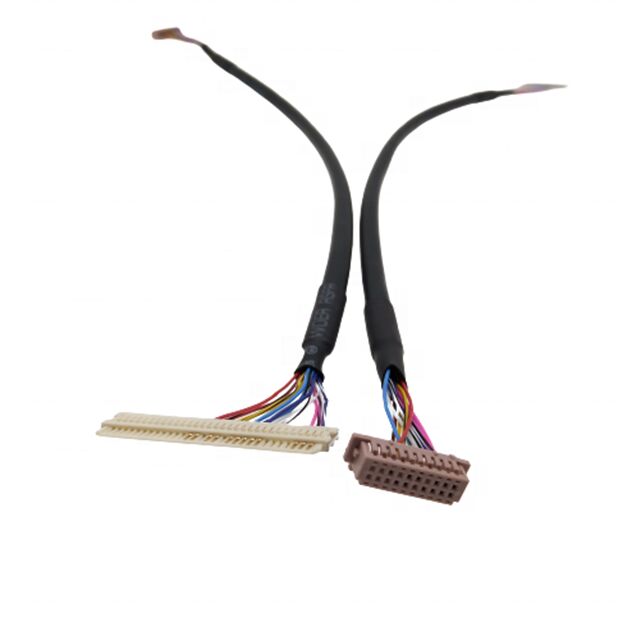

Name: General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board
Brand: Zhangjiagang RY Electronic CO.,LTD
SKU: Câble Jae LVDS RY-8163
Price: 6.10 USD
Availability: InStock

Maison > PRODUITS > Câble équipé de LVDS >

General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

JAE FI-x30 30Pin LVDS cable

Hirose 20Pin DF13 shielded wire

Twisted LVDS cable for driver board

Lieu d'origine:

Jiangsu, Chine

Nom de marque:

RY lvds Jae Cable

Certification:

RoHS

Numéro de modèle:

Câble Jae LVDS RY-8163

Contactez-nous

Demandez une citation

General LCD LVDS Screen Cable JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

Détails de produit

Matériau conducteur:

Cuivre

Connecteur 1:

JAE FI-X30

Connecteur 2:

HiroseDF13

Pas:

1,0 mm / 1,25 mm

Type de fil:

20276

Longueur de fil:

25 cm

Genre:

Mâle à femelle, mâle à mâle

Taille du fil:

22-30AWG

Épingles:

2-60 broches

Type de câble:

32AWG,30AWG,28AWG,26AWG

Type de bouclier:

Simple/Double/Sans bouclier

Couleur du câble:

noir/gris

Longueur du câble:

50 mm à 15 000 mm

Type de traitement:

Sertissage, pressage, soudure

Lancement de connecteur:

0.3mm-4.2mm

Conditions de paiement et d'expédition

Quantité de commande min

Produits connexes

86--13405295160

info@rygroup.net

Contact maintenant

Description de produit

General LCD LVDS Screen Cable

JAE FI-x30 30Pin to Hirose 20Pin DF13 Twisted 20276 Shield Wire for Driver Board

Product Specifications

Cable Type	32AWG, 30AWG, 28AWG, 26AWG LCD 20cores single/double shield cable LCD 32cores single/double shield cable LCD 20cores/32cores non-shield cable
Cable Color	Black/Grey
Connectors	JAE, HRS, JST, AMP, Dupont, ufl, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic connectors
Cable Length	50mm - 15000mm
Processing Methods	Crimping, pressing and soldering types
Pin Out Connection	Customized per customer's request (provide LCD and main board datasheets)
Connector Pitch Range	0.3mm - 4.2mm
Performance Characteristics	Excellent signal transfer, clear picture quality, no shaking or transfer issues

Key Advantages

Direct manufacturing factory
Competitive pricing with quality assurance
Short lead times
ISO9001:2008 certified
OEM/ODM services available
ISO/RoHS compliant
100% electrical and performance testing

Applications

LCD/Display/Advertising machine/Phone/Laptop/Computer/PDA/Camera/LCM/Notebook/Tablet PC/HDD

Company Profile

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
